Martin Logan Dynamo Foundation 12

Digital Signal Processing

High-resolution 200MHz DSP engine with 56-bit processing

Frequency Response

24–200 Hz ±3 dB (Anechoic via LFE input)

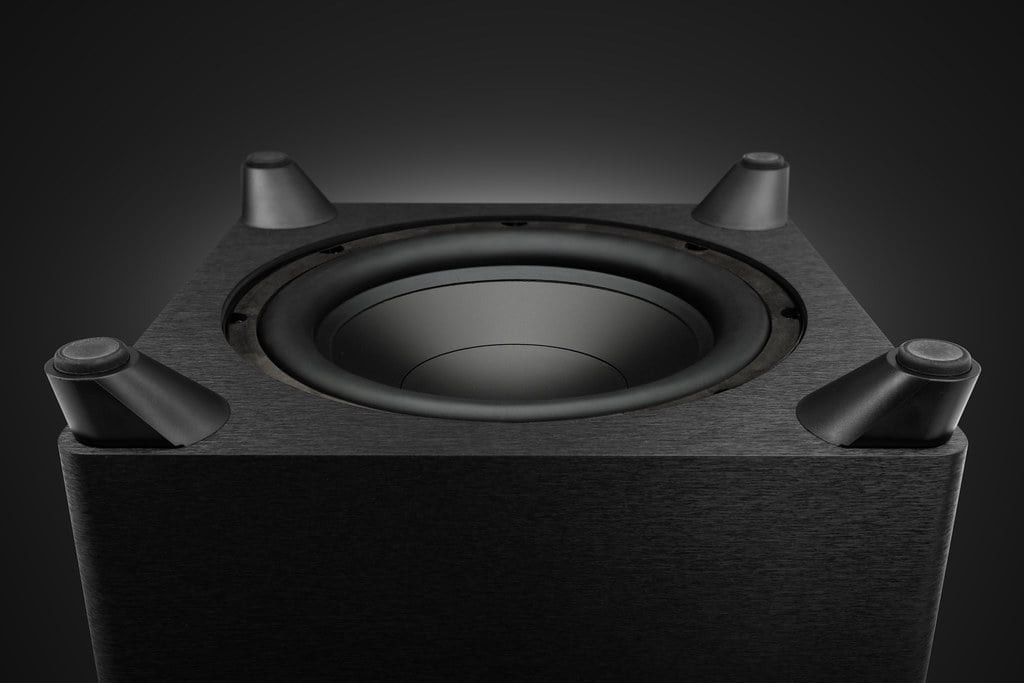

Low Frequency Transducer

12” (30.5cm) high-excursion, Ultra-Rigid Polypropylene (URP) cone in a stamped steel basket

Cabinet

Sealed MDF cabinet with reinforced MDF woofer baffle

Amplifier

Magnitude® MT-700 Amplifier with 700W peak (350W continuous)

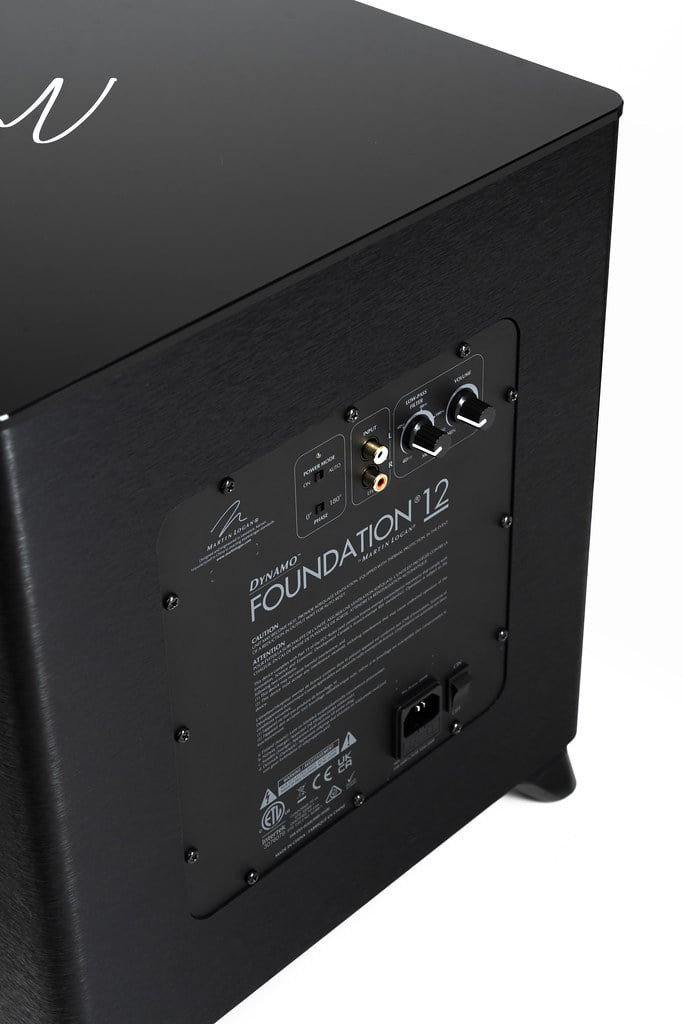

Controls (Backplate)

Level: Min–Max
Low-Pass Filter: 40Hz-Bypass
Power Mode: On, Auto
Phase: 0°, 180°

Wireless Inputs

WSK-1 Kit Sold Separately

Inputs

Line Level: Left, Right/LFE

Power Draw

Max: 350W
Standby: 0.5W

Feet

Non-Slip

Weight

29.1 lbs. (13.2 kg)

Dimensions (H x W x D)

16" x 14" x 14" (40.6cm x 35.8cm x 35.8cm)

Finish

Brushed black vinyl with high-gloss top
