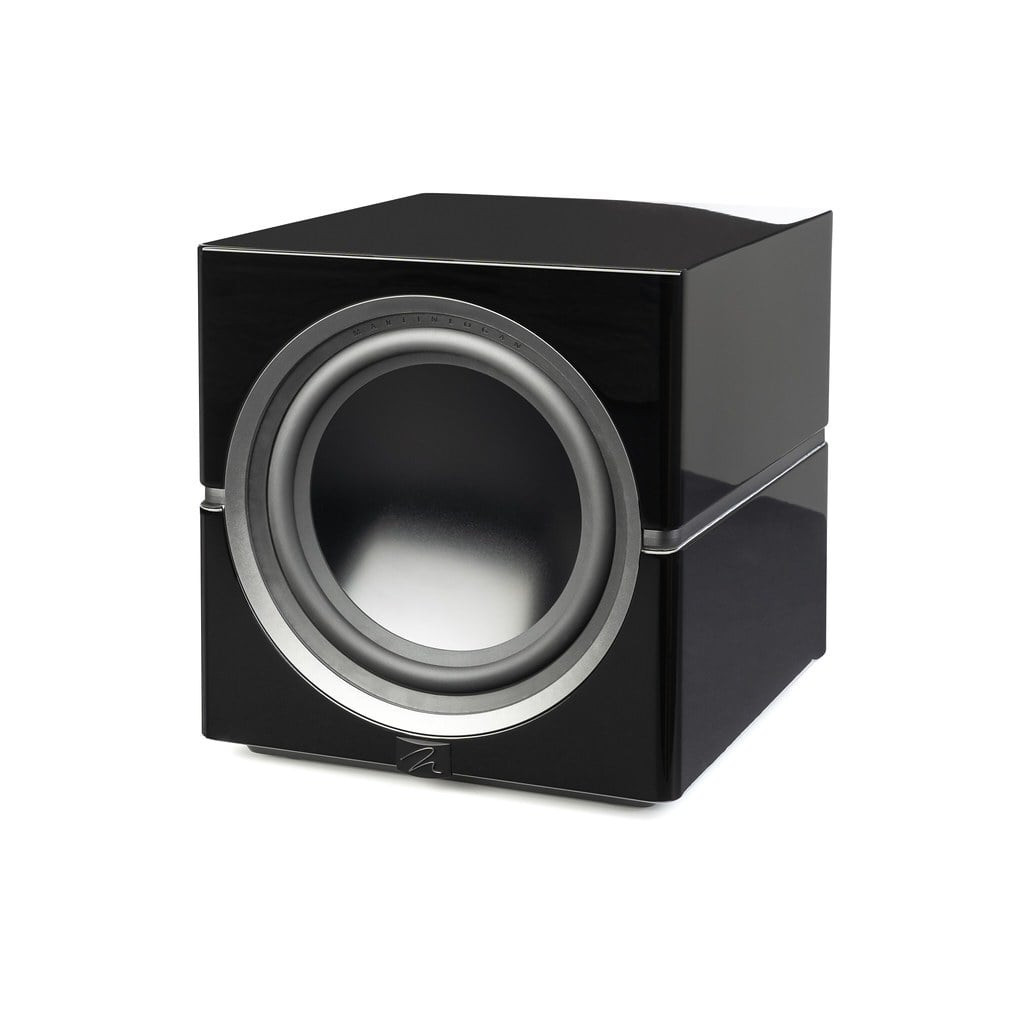

Martin Logan Dynamo 12

Digital Signal Processing

Ultra High-Resolution 500MHz Vojtko DSP Engine with 64bit processing

Frequency Response

22–200 Hz ±3 dB (Anechoic via LFE input)

Low Frequency Transducer

12” (25.4cm) high-excursion, anodized-aluminum cone in a stamped steel basket

Cabinet

Precision-crafted, sealed MDF enclosure featuring a robust 1-inch thick MDF woofer baffle

Amplifier

Magnitude® MT-1.6kW Amplifier with 1,600W peak (800W continuous)

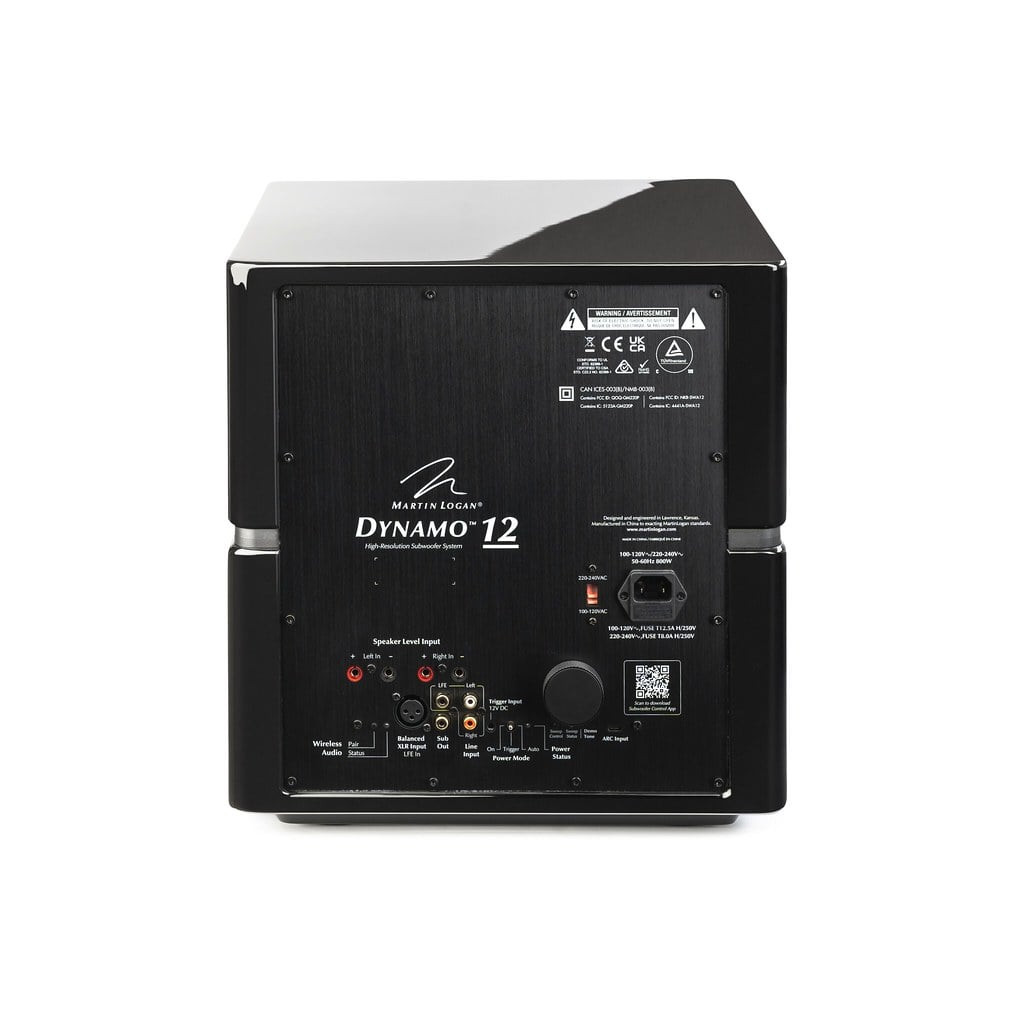

Controls (Backplate)

Level: Interactive LED Backlit Knob
Tone Sweep: Sweep Start and Pause (with status light)
Power Mode: On, 12v Trigger, Auto
Wireless Audio Pairing Button (for included MartinLogan wireless transmitter)

Controls (via Bluetooth)

Level: -40 to 12dB (Min-Max)
Low-Pass Filter (Frequency): 35–120Hz (1° Increments)
Low-Pass Filter (Order): Bypass, Third, Fourth
Phase: 0–180° (1° Increments)
Phase (Polarity): Normal, Inverted
Preset Listening Modes: Movie, Music, Night
20–30Hz Level: ±10dB
Anthem Room Correction (ARC Genesis): On, Off
Tone Sweep (120-20Hz): On, Off, Pause (Frequency)

Wireless Inputs

Integrated Wireless Receiver, Wireless Transmitter Included

Inputs

Line Level: Left, Right, and LFE XLR: LFE
Speaker Level: Left and Right (requires banana plugs)

Power Draw

Max: 800W
Standby (Wireless Disabled): 0.5W
Standby (Wireless Enabled): <2W
*Transmitter and Subwoofer combined

Feet

Integrated Anti-Vibration Feet (carpet spikes included)

Weight

61.5 lbs (27.9 kg)

Dimensions (H x W x D)

16-3/4" x 15-3/4" x 15-3/4" (42.4cm x 39.9cm x 39.9cm)

Finish

Gloss Black
